LOFFELSTEIN WATER LOFFEL
Environment – Waterlöffel® is eco-friendly and has passed all environmental impact studies linked to projects that have been completed to date.
Technical advice – Waterlöffel® walls are design intensive and as the manufacturers of this specialised product, we recommend that you use the services of a recognised geotechnical or hydraulic engineer to design your projects

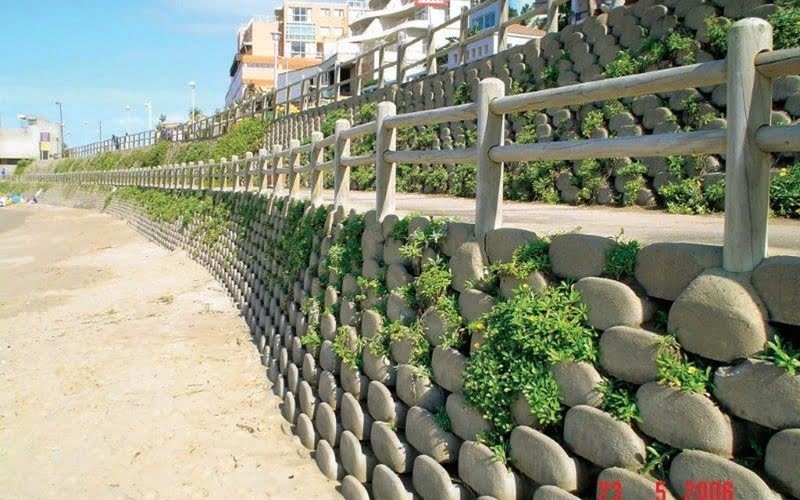

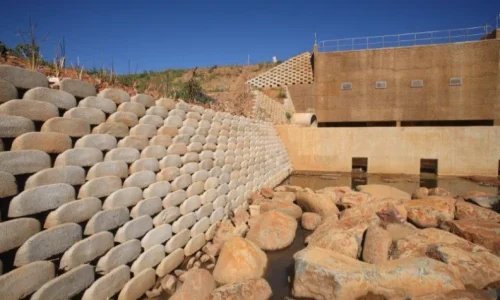

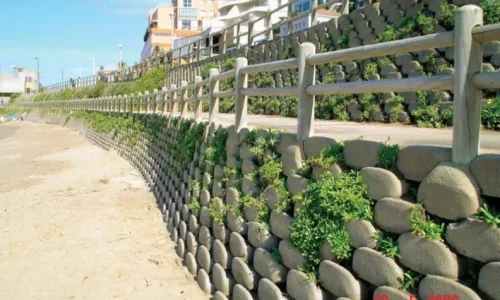

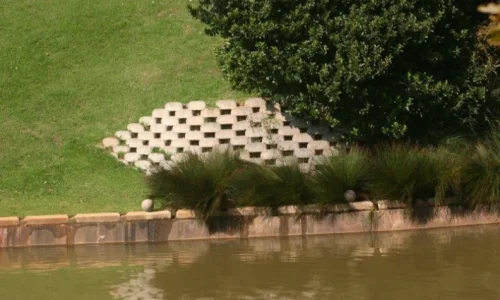

Waterlöffel® is a versatile interlocking dry stack concrete retaining system purposely designed to combat :- • Coastal dune erosion by wave action and wind • River bank erosion in water courses by seasonal storms • Erosion of storm water outlets Other uses of Waterlöffel® in construction :- • Sea walls • Coastal promenades • Beach access ramps • Bio-filters • Dam walls • River weirs • Marina waterways • Canals

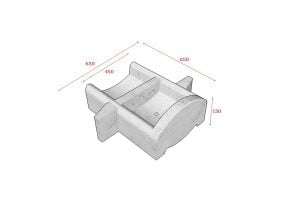

Type | LOFFELSTEIN water loffel |
---|---|
Weight (kg) | 72 kg |
Length (mm) | 650 |
Width without wings (mm) | 450 |
Width with wings (mm) – 100mm each side | 650 |
Standard wall angle | 60° |
Units per sqm (straight) | 11 |
Units per Sqm (curved) | 12 |
